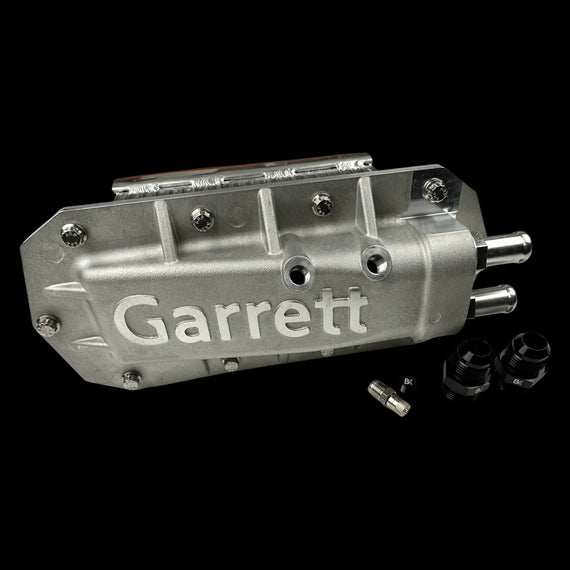

Working closely with Garrett’s cooling engineers, with hours of CFD flow simulation, we were able to target the highest velocity areas in the plenum to maximize water distribution throughout the core. We also targeted to get the most uniform flow distribution as possible on the coolant side. The Garrett RZR intercooler is unique in several ways:

Vertical flow core design with tank on top, not inside the plenum for maximum core surface area.
Tank on top increases coolant capacity for better cooling and less chance of heat soak.
OE cooler has great heat transfer performance, but is highly prone to failure. The Garrett intercooler maintains the OE level heat transfer performance but with a much stronger design for improved durability. Other aftermarket products do not maintain OE heat transfer performance levels.
Offset fin on both water and air sides of the core for rapid heat transfer, Tig welded to the billet lid.
Billet lid is CNC machined from 6061-T6 aluminum and includes ARP stainless steel fasteners that hold the cooler to the housing.
Features -10 AN ORB ports, includes fittings to install with factory hoses or aftermarket -10 AN lines.
Designed with accessible air bleed valve for easy coolant installation, 1/8 NPT port installed for coolant temp data logging.
Drop in installation, no modifications required, all necessary hardware included.
Includes seals between the cooler and the air plenum on all 3 sides of the cooler to prevent charge air from bypassing around the core. Other aftermarket options do not offer gaskets.
Fits all turbo RZR's from 2016 to current, including Turbo-S and ProXP

GARRETT INTERCOOLER FOR XPT / TURBO S / PRO XP

Peak Offroad Performance

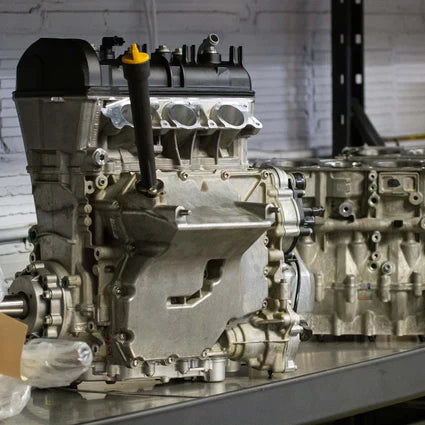

P.O.P CANAM X3 LONG BLOCK PACKAGE-WILD (RATED TO 550HP)

$9,589.99

PEAK OFFROAD PERFORMANCE is your 1 stop shop for Long Block Assembly solutions! All Long Block Assemblies are built around a customer supplied engine core. The processes included for a complete assembly are built from oil sump to valve cover and stator cover as drop in, ready to install long blocks. With 3 different options, we everything you need from mild to wild!

All engines will be disassembled and reassembled in house. Once purchased, we will coordinate with you to get the process started right away!

WILD ENGINE BUILD (RATED TO 550HP):

*WSRD Closed Deck Block Service - Includes WSRD Bore & Hone Service

*WSRD Ultimate - Big Pin Piston Set

*WSRD Ultimate - Big Pin Connecting Rod Set

*WSRD Crankshaft Balance Service

*ARP Custom Aged 625+ Head Stud Kit

*BC Cometic Head Gasket

*WSRD Main Stud Set

*New OEM BRP Connecting Rod Bearings

*New OEM BRP Main Bearings

*New OEM BRP Thrust Washers

*Vapor Hone Cleaning Service

*Block Decking Service

*Short Block Assembly Service

*Your Choice of Camshaft (Additional Cost)

*CNC Cylinder Head Porting

*+1mm Intake Valves - 30mm

*+1mm Exhaust Valves - 26mm

*WSRD "Duner" Valve Spring Set - Includes Stainless Steel Retainers

*OEM BRP Valve Stem Seals

*Head Decking Service

*Valve Job Service

*Vapor Hone Cleaning Service

*Cylinder Head Assembly Service

P.O.P CANAM X3 LONG BLOCK PACKAGE-WILD (RATED TO 550HP)

Peak Offroad Performance

P.O.P CANAM X3 LONG BLOCK PACKAGE-HOT (RATED TO 475HP)

$7,029.99

PEAK OFFROAD PERFORMANCE is your 1 stop shop for Long Block Assembly solutions! All Long Block Assemblies are built around a customer supplied engine core. The processes included for a complete assembly are built from oil sump to valve cover and stator cover as drop in, ready to install long blocks. With 3 different options, we everything you need from mild to wild!

All engines will be disassembled and reassembled in house. Once purchased, we will coordinate with you to get the process started right away!

HOT ENGINE BUILD (RATED TO 475HP):

*WSRD Closed Deck Block Service - Includes WSRD Bore & Hone Service

*WSRD Terminator Piston Set

*WSRD Terminator Connecting Rod Set

* ARP Custom Aged 625+ Head Stud Kit

*BC Cometic Head Gasket

*New OEM BRP Connecting Rod Bearings

*New OEM BRP Main Bearings

*New OEM BRP Thrust Washers

*New OEM BRP Main Bolts

*Vapor Hone Cleaning Service
